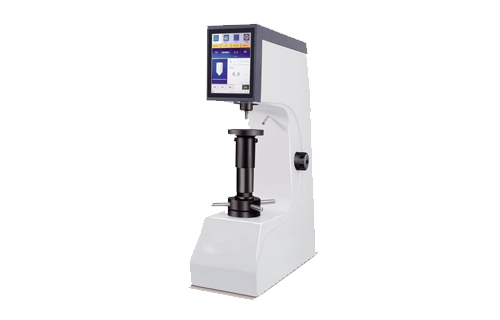

200HRS-150T Touch Screen Digital Display Rockwell Hardness Teste

The 200HRS-150T Touchscreen Digital Rockwell Hardness Tester is a high-precision, high-stability hardness tester featuring an improved mechanical structure for enhanced stability. It utilizes an 8-inch touchscreen and a high-speed ARM processor, resulting in fast computing speed, rich content, powerful functions, intuitive display, a user-friendly interface, and simple and reliable operationThe 200HRS-150T Touchscreen Digital Rockwell Hardness Tester is a high-precision, high-stability hardness tester featuring an improved mechanical structure for enhanced stability. It utilizes an 8-inch touchscreen and a high-speed ARM processor, resulting in fast computing speed, rich content, powerful functions, intuitive display, a user-friendly interface, and simple and reliable operation

Message

200HRS-150T

220V (50Hz)

Power supply

92kg

Weight

510*290*730mm

Size

Advantage introduction

It features an 8-inch color touchscreen and a casting body for enhanced stability, minimizing the impact of frame deformation on hardness values and improving test accuracy.
It has a temperature measurement function and a digital temperature measurement circuit for long-term stable and reliable operation.
It features automatic correction for cylindrical and spherical surfaces, with corresponding prompts. It also features software hardness correction.
It can set maximum and minimum hardness values, and an alarm sounds when the test value exceeds the set range.
It has a database function that automatically groups and saves test data.
It has a hardness curve display that visually displays hardness value changes.
The database automatically records parameters such as scale, test force, hardness value, and temperature. The number of test points per group can be freely set between 1 and 10.

Parameter

Initial test force	10kgf(98.07N)
Test force	588.4N (60kgf), 980.7N (100kgf), 1471N(150kgf)
Measuring range	20-95HRA, 10-100HRBW, 20-70HRC
Test force application method	Automatic loading, holding, and unloading
Variation load method	Manual load change
Number display method	Touchscreen display
Dwell time	1-30s
Maximum specimen height	200mm
Distance from indentation center to machine wall	160mm
Hardness resolution	0.1HR
Touch screen size	8-inch
Printing method	Bluetooth printer
Data storage capacity	2000 prints (maximum)
External dimensions	510290730mm
Net weight	80kg
Gross weight	92kg
